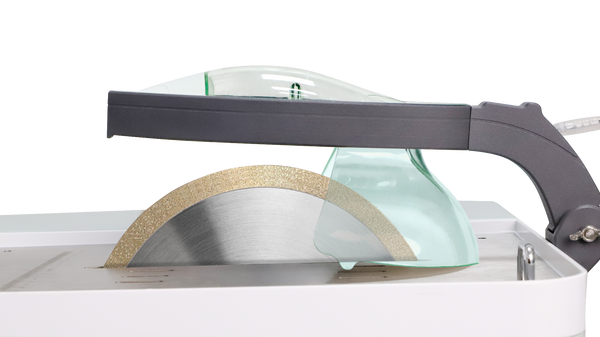

Why Your Diamond Blade Stops Cutting and How to Fix It
If your diamond blade suddenly cuts slowly, makes noise, or feels like it is rubbing instead of cutting, it does not always mean the blade is ruined.
In many cases, the blade is telling you something about speed, coolant, feed pressure, material match, or blade condition.
Problem 1: The Blade Is Glazed
Glazing happens when the cutting edge becomes smooth or loaded with material. Instead of exposing fresh diamond particles, the blade surface becomes dull and stops cutting effectively.
Signs of glazing:
- Blade feels smooth at the edge
- Cutting becomes slow
- More heat appears during cutting
- The blade rubs instead of bites
- User feels tempted to push harder
How to fix it:
Dress the blade with a ceramic grinding wheel or refractory brick if recommended for that blade type. Dressing helps expose fresh diamond particles.
Problem 2: Not Enough Coolant
Coolant is critical for gemstone cutting. Without enough coolant, the cutting area may overheat and debris may build up.
Signs of poor cooling:
- Heat buildup
- Dust or paste around the cut
- Burning smell
- Faster blade wear
- Chipping or cracking
- Blade slows down
How to fix it:
Stop cutting, add enough coolant, and make sure coolant reaches the cutting area. Do not continue dry cutting if the blade requires wet use.
Problem 3: Feed Speed Is Too Fast
A diamond blade cuts by grinding. It needs time to remove material. If the user pushes too hard, the blade may slow down, deflect, overheat, or chip the material.
Signs of fast feed:
- Motor load increases
- Cut becomes rough
- Stone chips near the edge
- Blade feels stuck
- Material vibrates
How to fix it:
Reduce feed speed. Keep the feed parallel, gentle, slow, and steady. Let the blade do the work.
Problem 4: RPM Is Not in the Right Range
RPM affects cutting action. If speed is too low, the blade may not cut efficiently. If speed is too high, heat and vibration may increase.
For ToAuto’s 6-inch sintered diamond blade, the standard safe speed range is 2000–3500 RPM, and the maximum speed is 4500 RPM.
How to fix it:
Check the blade’s recommended RPM range. Do not exceed the maximum safe speed. Adjust based on material hardness and thickness.
Problem 5: The Blade Does Not Match the Material
A blade designed for gemstones should not be used as a general metal cutting blade. A blade designed for copper and aluminum may not perform well on stone. A mild steel blade is different again.
Common mismatch examples:
| Wrong Use | Better Choice |
|---|---|
| Diamond gemstone blade used on steel | Use a steel or CBN-type solution |
| Copper/aluminum blade used on jade | Use a diamond gemstone blade |
| Coarse blade used for delicate stone | Use finer grit |
| Thin blade used with too much pressure | Use slower feed or more support |
Problem 6: The Blade Is Damaged
If a blade is cracked, warped, missing tips, or severely worn, do not continue using it.
Stop immediately if you notice:
- Cracks
- Warping
- Missing segments or tips
- Abnormal vibration
- Unusual noise
- Jamming
A damaged blade should be replaced.
Quick Troubleshooting Table
| Symptom | Possible Cause | What to Do |
|---|---|---|
| Blade cuts slowly | Glazing or dull edge | Dress blade if appropriate |
| Cut is hot | Not enough coolant | Add coolant and check flow |
| Stone chips | Fast feed or wrong grit | Slow down, use finer grit |
| Blade jams | Too much pressure | Stop, inspect, reduce feed |
| Cut is not straight | Blade wobble or poor support | Check installation and material hold |
| Blade wears fast | Wrong material or dry cutting | Match blade and use coolant |
Best Practice for Longer Blade Life
To make a diamond blade last longer:
- Use the correct blade for the material.
- Keep enough coolant during cutting.
- Feed slowly and steadily.
- Avoid forcing the cut.
- Clean the blade after use.
- Dry and store it properly.
- Dress the blade only when appropriate.
- Replace damaged blades immediately.
FAQ
Why is my diamond blade not cutting?
It may be glazed, dull, used with the wrong material, running at the wrong RPM, or not getting enough coolant.
Should I push harder if the blade stops cutting?
No. Pushing harder can damage the blade, material, or machine. Stop and check the cause.
Can I sharpen a diamond blade?
Some dull or glazed blades can be dressed with a ceramic grinding wheel or refractory brick if recommended.
When should I replace the blade?
Replace it if it is cracked, warped, badly worn, missing tips, or still does not cut after proper inspection and dressing.
