Melting Furnace Crucible Guide: Size, Fit, Inspection, and Replacement

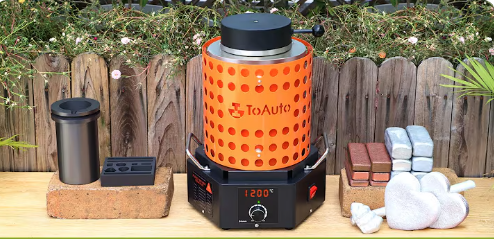

Quick answer
A crucible must match the furnace geometry, metal, temperature range, support, and lifting tools. Inspect it cold before every heat, keep it dry, load it without impact or wedging, and replace it when cracks, serious thinning, deformation, or uncertain damage appear. There is no universal 鈥渘umber of melts鈥?lifespan.
Fit is more than 鈥渋t drops into the hole鈥?/h2>
Two crucibles with similar advertised capacity may differ in outside diameter, height, rim, base, wall profile, and pouring groove. Those details determine whether the vessel sits correctly, clears the chamber, works with the lid, and can be gripped by the intended tongs.
Use the furnace manufacturer's exact replacement specification whenever possible. MIFCO's electric-furnace manual explicitly warns against using an arbitrary crucible size in a furnace designed for another size. That is sensible beyond one brand: poor support, contact with the chamber, or an incompatible grip can turn a routine lift into a failure.
Before buying a replacement, record:
- Furnace model and revision
- Crucible part number, if available
- Outside diameter, overall height, rim shape, and base shape
- Intended metal or alloy family
- Maximum process temperature
- Required working capacity, including freeboard
- Tong type and contact points
A smaller crucible placed inside a larger one is not automatically a safe adapter. Unless the furnace manufacturer approves the arrangement and support method, you have changed the heat path, stability, clearances, and lifting geometry.
Match material to the application
鈥淕raphite crucible鈥?describes a category, not one universal product. Commercial foundry crucibles can combine graphite with clay, silicon carbide, ceramic bonds, glazes, and application-specific formulations. Foseco notes that crucible characteristics are selected for the melting, holding, or transfer duty.
For a compact resistance furnace, use the material and shape specified by the equipment maker. Do not borrow gas-furnace preheating advice or industrial holding-furnace practices without checking that they apply. Different crucible materials require different first-use and heating procedures.
Keep separate crucibles for incompatible metals or alloy families when contamination matters. Label the vessel, not just its storage box, and keep a simple log of the metal used, visible condition, and unusual events.
Inspect the cold crucible every time
Good inspection takes less time than cleaning a metal spill from a furnace chamber. Under bright light, check:
- The rim and pouring feature for chips or cracks.
- The outside wall for vertical or lateral cracks, pits, and heavy oxidation.
- The base for damage, rocking, or distortion.
- The inside for adhered dross, deep erosion, and local thinning.
- The tong contact area for crushing or gouging.
Compare with earlier photos if possible. Slow wear is easier to recognize when you have a baseline. If you discover a crack or cannot confidently judge a damaged area, retire the vessel and contact the manufacturer. Do not test an uncertain crucible with molten metal.
The common damage chain
Crucible failures often begin with ordinary handling:
- Moisture: Storage in damp conditions adds thermal-shock risk.
- Fast temperature change: Heating too quickly or placing a hot crucible on a cold surface can crack it.
- Poor tong fit: Tight or point-loaded tools can crush the wall.
- Impact: Dropping dense ingot into the vessel creates local damage.
- Wedged charge: A long bar can expand before melting and press against the walls.
- Dross buildup: Deposits can expand differently from the crucible and contribute to cracking.
- Excessive flux or cleaning: Aggressive chemistry or tools can erode the vessel.
Morgan's troubleshooting chart identifies each of these as plausible causes in specific failure patterns. It is a diagnostic starting point, not permission to keep using a damaged vessel.
Load without creating a mechanical trap
Every charge item should be clean, dry, and sized to sit inside the crucible without bridging the walls. Place heavy pieces gently. Do not ram material down to make a headline capacity fit.
Leave freeboard. A nominal capacity is not a target fill line, and kilogram labels are metal-dependent. Overfilling makes lifting and pouring harder and increases the consequence of foaming, flux expansion, or a careless movement.
When adding metal to an existing molten bath, moisture becomes especially dangerous. MIFCO's manual stresses that added metal must be dry because rapid steam generation can eject molten material.
Preheat and cool by the correct procedure
There is no single preheat schedule for every graphite-containing crucible. Follow the instructions for the exact vessel and furnace. The same applies to cooling: avoid rapid, uneven temperature changes and unapproved resting surfaces.
Store spare crucibles in a warm, dry place where they cannot be knocked or contaminated. Inspect new arrivals for shipping damage before placing them in service. Keeping a spare is useful only if its condition is known.
When should a crucible be replaced?
Replace it when condition, not a calendar, says the safety margin is gone. Immediate reasons include a visible crack, leakage, serious wall thinning, major deformation, a damaged base, or crushing at the tong contact area. A hard impact or severe thermal event also deserves a careful retirement decision even if the damage is not obvious.
Claims such as 鈥渓asts 30 melts鈥?ignore alloy, temperature, flux, hold time, heating rate, atmosphere, handling, and cleaning. Track those variables. Your own history with the exact setup is more useful than a universal cycle count.
What real users ask
Recent community threads ask whether a hairline crack is safe, whether a tiny crucible can sit inside a larger furnace, and how many melts graphite should survive. Those questions show why a visual-only yes/no answer is risky. Fit, material, loading history, and the manufacturer's limits matter; when a crack is suspected, replacement is the defensible choice.
Frequently asked questions
Can I use a smaller crucible in my furnace?
Only if the furnace manufacturer approves that crucible and its support, clearance, lid, heating, and tong arrangement. A vessel that physically fits may still be unstable or poorly heated.
Can a cracked graphite crucible be repaired?
Do not rely on a field repair to hold molten metal. Retire the damaged crucible and use the correct replacement. The cost of a new vessel is small compared with a spill into a hot furnace.
How many melts should a crucible last?
There is no reliable universal count. Alloy, flux, peak temperature, cycle rate, thermal shock, oxidation, cleaning, and handling all affect wear. Inspect before every heat and replace by condition.
Bottom line
Treat the crucible as a load-bearing process component, not a consumable cup. Match the exact furnace, metal, support, and tongs; store it dry; inspect it cold; and remove it from service when the condition is uncertain. Compatibility and inspection prevent more problems than a promised lifespan.
