Silver Melting Furnace Guide: Batch Size, Crucibles, and a Clean Workflow
Quick answer
Choose a silver melting furnace by your real batch mass, the exact silver alloy, crucible compatibility, available electrical supply, and how quickly you can move from furnace to mold. Reaching silver's melting region is necessary, but a clean, controlled pour depends on the whole thermal path.
鈥淪ilver鈥?is not one process
Fine silver, sterling silver, and proprietary jewelry alloys do not behave identically. Their melting ranges, oxidation behavior, and recommended casting temperatures can differ. Use the alloy supplier's data for the specific material in your crucible. A generic internet temperature is not a process sheet.
That distinction matters because a controller usually measures the furnace environment, not the center of every piece of metal. The displayed value can reach its set point while a cold, tightly packed, or poorly coupled charge is still catching up. The mold and transfer time also affect whether the metal fills cleanly after it leaves the furnace.
Size the furnace around normal batches
A larger furnace is not automatically better for jewelry work. If most jobs use a few hundred grams, a smaller crucible can be easier to handle and may reduce the amount of hot equipment you must control. If you regularly cast larger trees or bars, repeatedly splitting one job into undersized melts can create its own variability.
Use this sequence:
- Calculate the metal required for the part, sprues, button, and process allowance.
- Identify the densest alloy you expect to use.
- Choose a compatible crucible with practical freeboard.
- Confirm the furnace accepts that exact crucible size.
- Check that your tongs and mold station suit the loaded weight.
Do not convert a furnace's nominal kilogram label directly between aluminum, copper, gold, and silver. The physical volume is fixed; the mass changes with metal density.
Temperature headroom is only one selection factor
Pure silver's freezing point is used as a high-temperature reference near 962掳C, but a jewelry alloy may have a melting range rather than one sharp number. A furnace must provide enough usable headroom for the intended alloy and process, not merely advertise a maximum above a textbook melting point.

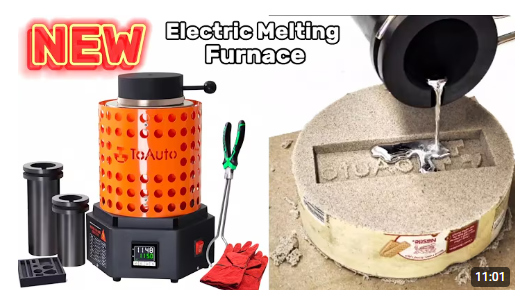

Also check controller stability, chamber design, recovery after opening, and the manufacturer's stated compatible metals. ToAuto's current 3 kg TGF3000 page identifies a 1400 W resistance furnace with PID control and a maximum setting of 1100掳C. The current dual-crucible listing includes 1 kg and 3 kg crucibles, but ToAuto has sold revisions with differing published specifications. Match the listing, nameplate, manual, and plug before use.
Keep the metal and crucible history clear
A crucible is part of the material system. Reusing one vessel for unrelated alloys can carry residues into later melts. A practical workshop labels crucibles by metal or alloy family and keeps their histories separate.
Before each heat, inspect the rim, wall, base, and pouring feature. Retire a crucible with a crack, serious thinning, or damage that makes its condition uncertain. Morgan's crucible troubleshooting guidance connects cracking and wear with thermal shock, moisture, poor tong fit, wedged charges, impact, and dross buildup. The safe response to a suspect crucible is replacement鈥攏ot a hopeful hot test.
The charge should be dry and placed without wedging long pieces across the crucible. Feedstock that expands before melting can load the wall. Handle dense pieces gently rather than dropping them into graphite.
Melting is not refining
An electric silver furnace changes solid metal into liquid metal. It does not, by itself, separate every contaminant or turn unknown scrap into verified fine silver. Refining is a distinct chemical or metallurgical process with its own hazards and quality controls.
This is especially important with reclaimed jewelry. Solder, plating, stones, investment residue, and unidentified base metals can change the melt and its fumes. If composition matters, use traceable feedstock or have the material analyzed. Do not promise purity based on appearance.
Plan the mold side before the furnace side
A smooth melt can still become a failed casting if the mold, flask, or ingot mold is not ready. Confirm the correct mold preparation and temperature for the chosen process. Position it before opening the furnace. Keep the travel short and the movement deliberate.
Avoid learning a new furnace, a new alloy, and a new casting system in one full-capacity attempt. A smaller documented trial lets you observe heating, handling, pour control, surface condition, and cleanup without risking the maximum amount of metal.
A practical model decision
For occasional small batches of known gold or silver alloy, the TGF3000 format may be a reasonable starting point when its 1400 W supply and 1100掳C limit fit the material and site. A dual-crucible 1 kg plus 3 kg kit may better suit a shop that genuinely uses two batch scales. Higher-power ToAuto resistance models may reduce the mismatch between a small furnace and a larger routine workload, but compare exact revisions rather than buying by capacity label alone.
No model choice overrides ventilation, dry materials, correct tools, and the alloy supplier's process data.
What real users ask
Recent silver-casting discussions repeatedly ask why silver appears molten but freezes before filling, whether a furnace is necessary for very small quantities, which temperature applies to sterling, and why the surface turns dark or rough. These are system questions. Alloy composition, mold preparation, oxidation, transfer time, and heat measurement can all matter; the furnace display alone cannot diagnose the result.
Frequently asked questions
What temperature should I set for sterling silver?
Use the casting guidance for the exact alloy and process. Sterling formulations vary, and the correct casting condition is not necessarily the same as pure silver's melting point. Confirm that the furnace, crucible, and mold process all support the supplier's range.
Can I use the same crucible for silver and copper?
Separate crucibles are the safer quality-control choice. Residual metal, oxides, and flux can contaminate a later melt. Label each crucible and retire it when its condition becomes doubtful.
Does melting scrap silver refine it?
No. Melting consolidates material; it does not prove purity or remove every contaminant. Unknown scrap should not be represented as a known grade without appropriate refining and analysis.
Bottom line
The right silver melting furnace is the one that fits your normal alloy, batch, power supply, and casting workflow with usable headroom. Keep crucible histories separate, rely on alloy-specific data, and document small trials. A clean result comes from the system鈥攏ot from one temperature number.
